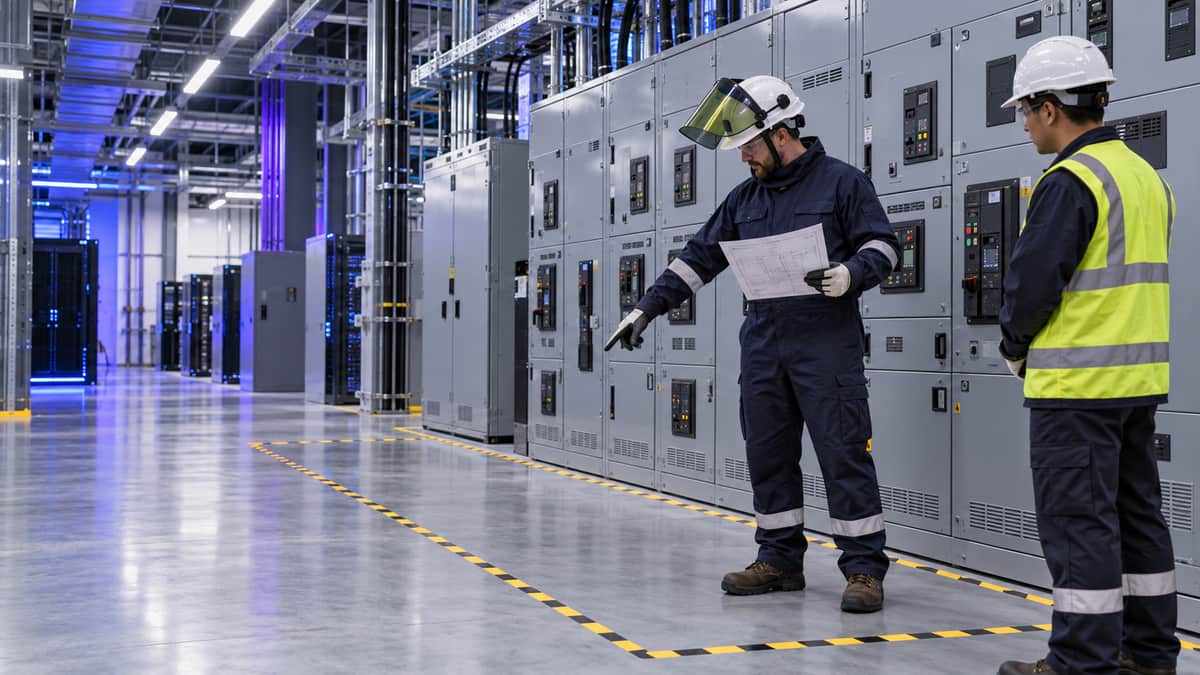

Arc Flash Boundary Walkthrough: What New Data Center Electricians Should Verify Before Energized Work

The Operational Question

Before a qualified electrical worker opens a switchboard, switchgear lineup, UPS cabinet, panelboard, or power distribution unit, can the team explain exactly where the arc flash boundary is, who may cross it, and what controls are in place? In a data center, that answer must account for redundant power paths, temporary switching states, stored energy, remote controls, and the pressure to protect uptime. A boundary copied from an old label or remembered from a different lineup is not a reliable pre-task plan.

This walkthrough gives new data center electricians and their supervisors a practical way to review arc flash information before a task begins. It explains what to verify in the equipment room, what questions belong in the job briefing, and how to connect the work to a role-based training plan. The goal is not to replace the employer's electrical safety program, incident-energy analysis, permits, or qualified-person determination. The goal is to help a team recognize when those controls need to be checked before anyone approaches exposed energized parts.

Who This Affects

This topic matters to anyone who may plan, supervise, perform, observe, or support electrical work around energized equipment:

New data center electricians learning the site's one-line diagrams, switching language, and approach limits.
Critical facilities engineers and electrical technicians working at switchgear, UPS systems, static transfer switches, transformers, busway, panelboards, and PDUs.
Operations managers who approve maintenance windows and coordinate electrical risk with customer load and redundancy requirements.
Electrical contractors and commissioning agents entering an enterprise, colocation, hyperscale, or edge site.
NOC and site staff who may need to understand a switching boundary without performing the electrical task.
EHS managers and training coordinators who maintain electrical safety programs and assign refresher learning.

The walkthrough is especially useful when a technician is new to the building, when equipment has been modified, when a maintenance bypass is being used, or when a procedure calls for an unusual operating state. A familiar room does not guarantee a familiar hazard. A lineup that is normally fed from one source may be backfed through a tie, a generator, a UPS maintenance bypass, or an alternate utility path during planned work.

What Can Go Wrong

An arc flash is not simply a large spark. A fault can release intense heat, pressure, light, molten metal, and sound in a fraction of a second. The severity depends on the available fault current, clearing time, equipment configuration, working distance, enclosure, and other variables. In a data center, the same task can present a different exposure after a breaker setting change, a transformer replacement, a generator addition, or a change in the normal and emergency source arrangement.

The most common failure is treating a label as the whole plan. The label is an important field reference, but it may not answer whether the equipment is in the configuration used by the analysis. It may not show a temporary source, a changed protective-device setting, an unlisted section, or a downstream source that remains energized. The team must use the site's current electrical documentation and procedure, and escalate when the field condition does not match.

Other consequences include:

A worker crosses a restricted approach or arc flash boundary without the required authorization, planning, or protection.
A technician assumes opening a door makes equipment safe even though exposed energized parts are accessible after the door opens.
A remote switching action is treated as proof that all energy is absent, even though stored energy or another source remains.
A maintenance window begins before affected operators understand which loads, alarms, or transfer sequences may occur.
A contractor uses PPE selected for a different piece of equipment or incident-energy value.
A near miss is recorded as a personal mistake even though the real cause was an outdated one-line, unclear label, or incomplete turnover.

Electrical safety rules distinguish between normal operation of properly installed and maintained equipment and tasks that expose workers to energized parts or require interaction with equipment in a way that could create an electrical hazard. The exact controls depend on the task, equipment, site procedure, and employer's program. NFPA 70E is commonly used as a standards-aligned framework for electrical safe work practices, while OSHA requirements govern applicable workplace protections. Neither a course nor a certificate of completion replaces the employer's authorization, job planning, or site-specific qualification process.

What Managers Should Check

Use this checklist as a discussion aid before the job briefing. It is not a substitute for the site's electrical safety procedure or a qualified electrical worker's judgment.

1. Confirm the equipment identity and operating state

Start at the equipment, not in the training room. Match the asset tag, lineup section, breaker designation, and room location to the current one-line diagram and work order. Confirm whether the equipment is fed from normal utility, generator, UPS output, bypass, alternate source, or more than one source.

Ask the lead worker to describe the expected state in plain language:

What is energized now?
What will be opened, closed, racked, tested, or removed?
What source could energize the work area if the normal source is interrupted?
Is a tie closed, a bypass active, or a temporary connection installed?
Could automatic transfer, remote control, stored energy, or a control circuit change the state?

If the answer depends on an assumption, pause and verify it. A technician who cannot identify the source path should not be expected to infer it while standing at the equipment.

2. Compare the field label with the analysis and procedure

Read the arc flash label and compare its equipment identifier with the work package. Review the incident-energy value or category information, arc flash boundary, approach boundaries, shock protection information, and any PPE or task limitations provided by the employer's program.

Then ask whether the conditions used for the analysis still appear true. Managers should check for:

New transformers, generators, UPS modules, switchgear sections, breakers, or busway.
Protective-device settings that differ from the documented study.
Removed covers, damaged doors, missing barriers, or equipment that is not in its normal maintained condition.
Labels that are missing, illegible, inconsistent with the one-line, or attached to the wrong section.
A switching state or maintenance bypass that is outside the normal operating configuration.

Do not invent a boundary from a generic chart when the site procedure requires a current analysis. Escalate a mismatch to the responsible electrical authority before the task proceeds.

3. Establish who may enter each zone

The job briefing should state who is allowed to cross the arc flash boundary and under what conditions. That conversation should include qualified electrical workers, assistants, observers, operators, security or escort staff, and contractors who may enter the room for another reason.

A boundary is not a suggestion to stand nearby. It is a control that should be visible and respected. Use barricades, attendants, signs, locks, or other measures required by the work plan. Keep nonessential people outside the area, including people who want to watch a switching operation or take photographs.

Clarify whether the worker must also address shock protection boundaries and limited or restricted approach requirements. Arc flash and shock are related but different hazards. A person may be outside one boundary and still be too close to an exposed energized conductor for the task being performed.

4. Select task-specific protection and tools

PPE selection must follow the employer's program and the equipment's documented hazard information. Check the condition, rating, fit, and compatibility of the required clothing, face and head protection, gloves, hearing protection, footwear, and other equipment. Arc-rated clothing is not a blanket answer for every electrical task, and ordinary workwear is not automatically suitable.

Also verify insulated tools, voltage-rated test instruments, leads, probes, barriers, blankets, and temporary lighting. Test instruments should be appropriate for the expected voltage and category, inspected, and used according to the employer's procedure. A meter that is available is not necessarily a meter that is suitable.

5. Define the job stop points

Every briefing should identify conditions that require the crew to stop and contact the supervisor or electrical authority. Examples include:

The equipment tag, label, or one-line does not match.
A door, barrier, interlock, ground connection, or cover is damaged or behaves unexpectedly.
A source, tie, bypass, or control path cannot be confirmed.
A protective-device setting, alarm, relay indication, or operating state differs from the work package.
A test result is unexpected or the instrument behaves abnormally.
Another crew changes the equipment state or begins a related switching operation.

This is especially important for new technicians. “Stop and ask” should be a defined step in the procedure, not a personality test. Supervisors reinforce safety when they treat an interruption as useful information instead of lost time.

6. Coordinate with uptime and affected teams

Electrical safety planning and uptime planning belong in the same conversation. Before work begins, identify the affected UPS modules, PDUs, cooling controls, monitoring points, customer feeds, fire alarm interfaces, and generator or transfer sequences. Confirm who has authority to approve the maintenance window and who will watch for unexpected alarms or load movement.

Use a pre-job walkdown to align the electrical crew with operations. Have the new technician trace the relevant source path on the one-line, point to the equipment in the room, and explain what changes during each step. This simple teach-back can reveal confusion before the work starts.

7. Close the loop after the task

After the work, verify covers, barriers, labels, doors, settings, housekeeping, and documentation. Record discrepancies while the equipment and people are still available to explain them. If the field condition changed the risk, update the work package, drawing, label, or training example through the site's change process.

Which Training Fits This Situation

For a new electrician who needs to understand the hazard before working around switchgear, UPS equipment, panelboards, or PDUs, Data Center Arc Flash Safety Training is the most direct starting point. It can establish vocabulary around incident energy, boundaries, labels, PPE, and pre-task planning. It is a knowledge course with a certificate of completion, not a license, regulatory certification, or employer authorization to perform energized work.

Pair that focused course with OSHA Electrical Safety-Related Work Practices for Data Center Technicians when the learner needs a broader foundation in safe work practices and the site's role expectations. Power Systems & Electrical Fundamentals is a stronger choice for a technician who also needs a wider view of distribution, sources, switching, and data center power architecture. Managers building a power-team pathway can use the Power & Electrical Systems Bundle to combine related learning across roles, while still assigning site-specific qualification, supervised practice, and procedure sign-off separately.

A practical role-based sequence might look like this:

New technician: Power Systems & Electrical Fundamentals, then Data Center Arc Flash Safety Training, followed by a supervised equipment-room walkdown.
Electrical technician moving between sites: OSHA Electrical Safety-Related Work Practices for Data Center Technicians, then a local review of labels, one-lines, boundaries, and switching procedures.
Supervisor or operations manager: Data Center Arc Flash Safety Training plus a job-briefing exercise that tests source identification, boundary control, and stop-work decisions.
Contractor coordinator: A focused course for shared terminology, followed by documented site orientation and verification of the contractor's assigned scope and authorization.

Training is strongest when the learner must demonstrate the reasoning in the actual environment. Ask the technician to identify the equipment, trace the source, explain the boundary, select the documented controls, and state the first action if the field condition differs. That evidence supports the training program without overstating what an online course can authorize.

Common Mistakes to Avoid

Treating the arc flash label as current without checking the equipment identity and operating configuration.
Using “de-energized” as a casual synonym for “safe” without following the site's verification and absence-of-voltage process.
Assuming a UPS maintenance bypass or generator source is irrelevant because the normal utility breaker is open.
Allowing a new technician to observe inside a boundary without defining the observer's role and controls.
Selecting PPE by habit, by the largest value seen elsewhere, or by a generic internet chart.
Skipping the one-line teach-back because the crew has performed a similar task before.
Relying on a course completion certificate as proof of site qualification or permission to perform energized work.
Failing to document a label, setting, barrier, or drawing discrepancy after the task.
Letting schedule pressure turn a stop-work condition into an informal workaround.

Key Takeaway

An arc flash boundary is useful only when the team can connect it to the actual equipment, source configuration, task, people, and controls in front of them. New data center electricians gain confidence faster when supervisors ask them to trace the source, interpret the label, identify the boundaries, and explain the stop points before any cover is opened. This week, walk one electrical room with a new technician and have them teach back the boundary and source path for one planned task, then record any mismatch that needs correction.
